Customizable LOTO Placards | Built to Your Spec, International Standards

OSHA Requirement

Why Generic Placards Fail an OSHA 1910.147 Inspection

OSHA's lockout tagout standard requires documented, equipment-specific energy control procedures for every machine with hazardous energy. A generic "de-energize before service" sign does not satisfy (c)(4).

Each procedure must identify the specific energy sources on that machine, the sequence for de-energization, the type and magnitude of energy, and the method of control. Every machine gets its own placard.

Common audit finding: Facilities using generic placards or paper procedures are consistently cited for failing the machine-specific written procedure requirement of 1910.147(c)(4). (c)(4) is one of the three most-cited sub-clauses under 1910.147 in OSHA enforcement data.

Our custom placards are built from the actual specifications of your equipment. We work directly with your maintenance team and coordinate with OEMs when needed to gather the exact data required.

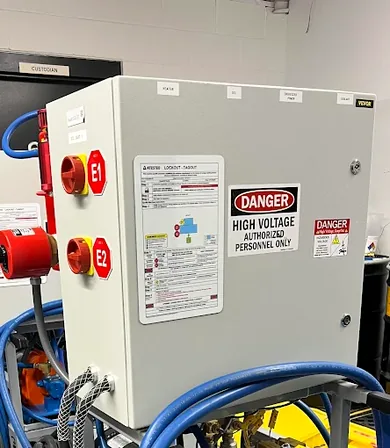

Real installation: high voltage electrical panel with a machine-specific LOTO placard mounted at point of use, E1 and E2 lockout points clearly identified

What a Machine-Specific LOTO Placard Must Include

Equipment identification and location
Each energy source type (electrical, hydraulic, pneumatic, thermal, etc.)
Magnitude and method for each energy source
Step-by-step shutdown and isolation sequence
Lockout device type and location for each energy point
Verification steps to confirm zero energy state under (d)(6)
Re-energization sequence

Get Your Placards Built

Products

LOTO Placards and Access Signs for Every Application

Every product is customized to your equipment and facility, built to industrial-grade specifications, and compliant with OSHA, ANSI Z535, and ISO standards.

Machine-Specific LOTO Placards

The core product. Custom-designed for each piece of equipment, covering all energy sources, isolation points, and lockout sequences. Built from your machine data, installed accurately the first time.

Single Point Identifiers

Visual markers for individual isolation points within a system. Technicians can identify each de-energization point without confusion, even on complex multi-source equipment.

Robotics and Automation Access Placards

Custom placards for automated interlock gated entry systems. Identifies authorized personnel, outlines steps required before entry, and specifies which tasks can be performed without full LOTO procedures. Commonly missed requirement for facilities with robotic cells.

Frequently overlooked: Facilities with robotic and automated systems often miss the placard requirements for interlock gated entry. A growing area of OSHA enforcement as automation adoption increases.

Custom Machine and Asset Tags

Custom tags for clear machine and asset identification. Manufacturer, machine number, rated capacity, and relevant tooling or maintenance info. Supports both safety and operational efficiency.

Wildly Customizable

Built to Your Spec, Not Ours

If you have a corporate safety standard, a regional compliance requirement, or a facility quirk that catalog providers cannot accommodate, that is where we start.

No Template Lock-In

Most placard providers offer a catalog. You pick a template, they print it. That works until your corporate safety standard does not match the template, your regional compliance requirement is not in the catalog, or your facility runs in a primary language the catalog never supported. At that point most providers say no. We start.

Our placards are built from the ground up to the specification you bring us. Dimensions, color systems, languages, materials, internal numbering, residual hazard pictograms, regional standard alignment. The placard leaves our facility custom to your floor.

International Standard Support

We design and produce placards aligned to the standard that applies where the facility actually operates. ANSI Z535 for U.S. sites. EN ISO 7010 for European parent companies. JIS Z 9101 for Japan-standard facilities. GB 2894 for facilities operating under Chinese signage requirements. Multi-standard layouts where one placard has to satisfy several regulators at once.

ANSI Z535 (United States)
EN ISO 7010 (European Union)
JIS Z 9101 (Japan)
GB 2894 (China)
ISO 3864 (international harmonized signage)
Multi-language layouts, right-to-left and CJK supported

The Bespoke Placard Brief

A recent project: an international manufacturer needed a set of access placards built to their internal corporate standard, in a non-English primary language, with regional compliance markings that catalog providers did not stock. The brief was specific. The tolerances were tight. We delivered.

Bespoke placard work is what we do every week, not an exception. If you have a spec, a corporate standard, or a regional requirement, we build to it.

What You Can Customize

Dimensions and aspect ratio to fit the equipment you actually have
Color systems matched to corporate safety palette or regional standard
Primary language plus secondary language(s) for mixed-workforce facilities
Internal corporate hazard pictograms incorporated alongside compliant ANSI/ISO marks
Material substrate: standard aluminum, stainless, composite, or specialty stock
Internal numbering and labeling system to match your existing asset registry
Optional QR or NFC linking to the digital procedure in LockStep

If a catalog provider has told you no: That is exactly the project we are built for. Bring us the spec, the corporate standard, the regional requirement, or the constraint the catalog could not handle. We will tell you straight whether we can build it and what it will take.

Material Specifications

High-color coated aluminum substrate
UV-protected laminate per ANSI Z535 contrast and header-height specs
Industrial-grade adhesive backing
Chemical resistant surface
Weather and UV resistant for indoor or outdoor use
Heat resistant for high-temperature environments
Easy-clean, smooth surface that resists dirt and grime
Rated lifespan of 200-plus years
Vibrant, long-lasting color that stays readable for decades

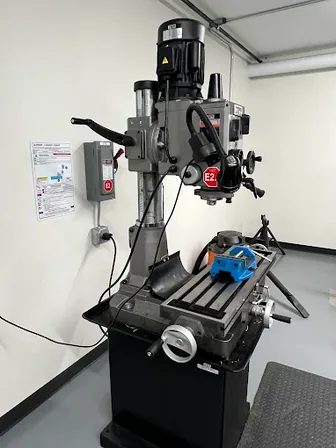

Industrial drill press with an E2 lockout point and a wall-mounted machine-specific placard, the kind of long-lifespan installation aluminum substrate enables

Why Material Matters

Paper and Laminate Fail in Industrial Environments

ANSI Z535 sets contrast ratios and minimum header height. Industrial-grade aluminum with UV-protected laminate survives wash-down, caustic cleaners, and outdoor mount locations without fade for 10-plus years in the field conditions documented by NFPA signage guidance.

Paper LOTO procedures tear, fade, and become illegible under oil, chemicals, and heat. Laminated placards peel, crack, and warp. When a procedure is unreadable, the equipment cannot be serviced safely and your facility is exposed to safety risk and compliance failure at the same time.

High-color coated aluminum holds up to the same chemicals, temperatures, and conditions your equipment operates in. A placard that lasts 200 years is a placard that never needs to be replaced due to material failure.

Installation is handled by our team with industrial-grade adhesive backing that bonds permanently to equipment surfaces, eliminating the risk of a placard falling off or being removed.

Get Your Facility Assessed

How It Works

From Your Equipment to a Fully Compliant Facility

We handle the whole process so your team stays on production, not paperwork.

On-Site Information Gathering

Our team visits your facility and collects required machine data, energy source information, and isolation point details. We work with your maintenance team and coordinate with OEMs when needed.

Custom Placard Design

Each placard is designed to your specific equipment specs using CAD tools. Content verified against 1910.147 before production.

Production

Placards produced on industrial-grade aluminum with high-color print and permanent adhesive backing. Every placard is quality-checked before shipping.

Accurate Installation

Our team installs every placard in the correct location on each machine. Precise placement means employees can find and read procedures quickly during maintenance tasks.

Documentation and Annual Review

Every procedure is stored in our LockStep compliance software, giving you centralized, auditable documentation. Annual reviews are scheduled automatically to keep procedures current.

Ongoing Support

Add new equipment or modify machines and we update procedures and placards. Your LOTO program stays current without eating internal bandwidth.

Common Questions

Frequently Asked Questions About LOTO Placards

Does OSHA actually require a placard on every piece of equipment?

Yes. 1910.147(c)(4) requires a documented, written energy control procedure for every machine or piece of equipment with the potential for unexpected energization, startup, or release of stored energy. Generic procedures are allowed only in narrow circumstances where equipment and process are exactly identical. For most facilities, every machine needs its own procedure.

We have LOTO procedures on paper. Do we need to replace them?

If the content is accurate and current, the procedure may be compliant. The issue is the medium. Paper degrades in industrial environments and becomes unreadable. Inspectors look for procedures that are accessible and legible at the point of use. Durable placards mounted on equipment are the standard that passes inspection.

How long does a full facility placard project take?

Depends on number of machines and facility complexity. Most mid-sized facilities with 50 to 200 machines complete on-site data collection and installation within a few weeks. We provide a detailed project timeline during the assessment phase before any commitment.

What happens when we add new equipment or modify machines?

New or modified equipment requires updated LOTO procedures. We provide ongoing support to update placards and documentation whenever your equipment changes. All procedures are stored in LockStep, so updates flow through quickly.

Do you handle robotics and automation LOTO requirements?

Yes. Robotic cells and automated systems carry LOTO and access control requirements that differ from standard equipment under ANSI/RIA R15.06. We specialize in access control placards for automated interlock gated entry, which is one of the most commonly missed requirements. See the robotics access placards section above for detail.

Custom Lockout Tagout Placards Built for Your Equipment
